ハイライト
waterproof LED lens for stadium
,3737/5050 LED lighting lens
,stadium lighting waterproof lens
-
モデル番号HH-529-64×1-xx-5050
-
材料光学グレードPC
-
透過率92％
-
サイズ(mm)286×116×11.8ミリ
-
防水はい/ガスケット
-
光源 の 数無制限
-
角度10°/15°/20°/40°/60°
-
光源3737/5050
-
応用スタジアム 照明
-
起源の場所中国深Shenzhen
-
ブランド名hanhui
-
証明CE,RoHs
-
モデル番号HH-529-64×1-xx-5050
-
最小注文数量1pc
-
パッケージの詳細カートン
-
受渡し時間2-12仕事日
-
支払条件T/T、Western Union、MoneyGram
-
供給の能力15000pcs/Week

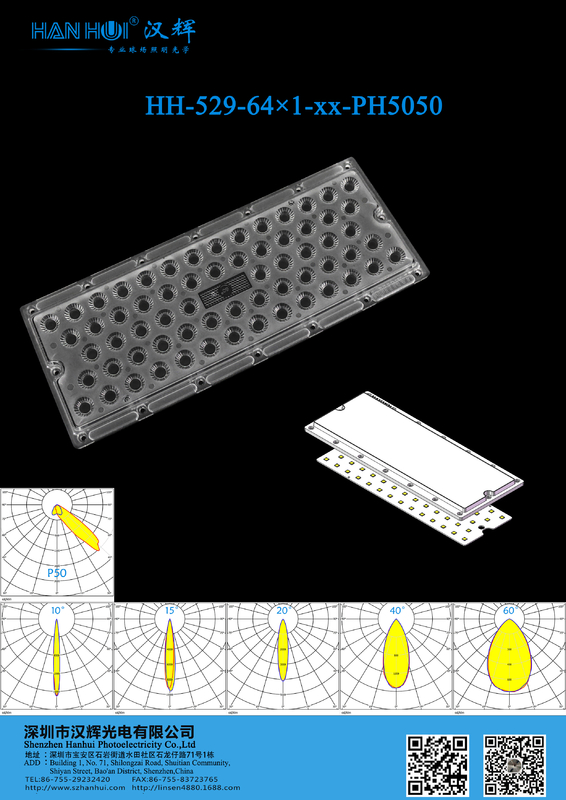

Waterproof 3737/5050 LED Lens for Stadium Lighting
Precision Optical Control 3737/5050LEDs Waterproof Lens For Court Lamp
Product Specifications
| Model No | HH-529-64×1-xx-5050 |
|---|---|
| Material | Optical Grade PC |
| Transmittance | 92% |
| Size(mm) | 286×116×11.8mm |
| Waterproof | Yes/Gasket |
| The Number of Light Source | Unlimited |
| Angle | 10°/15°/20°/40°/60° |
| Light Source | 3737/5050 |
| Application | stadium lighting |
Key Features
- High transmittance: 92% light transmittance for optimal light output
- Premium materials: Made with high-quality Teijin PC (custom materials available)
- Easy installation: Simple screw mounting for quick setup
- Waterproof design: Silicone gasket ensures effective waterproofing
- Multiple light distributions: Available in 10°, 15°, 20°, 40°, and 60° angles
- Custom sizes: Various dimensions available (custom molds can be created)
- Uniform illumination: Provides even, concentrated light spots with excellent color
Technical Specifications
| Mold No. | HH-529-64×1-xx-5050 |
|---|---|
| Material | PC |
| Transmittance | 92% |
| Size(mm) | 286×116×11.8mm |
| Angle | 10°/15°/20°/40°/60° |
| LEDs | 3737/5050 |
| LEDs number | 64 |
Applications
Ideal for stadium and court lighting applications.

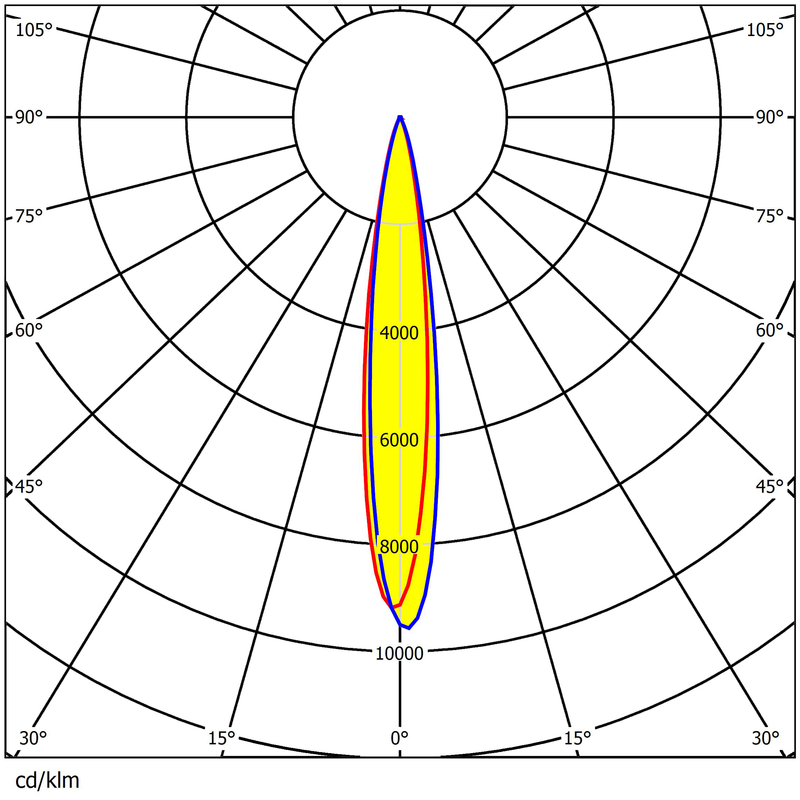

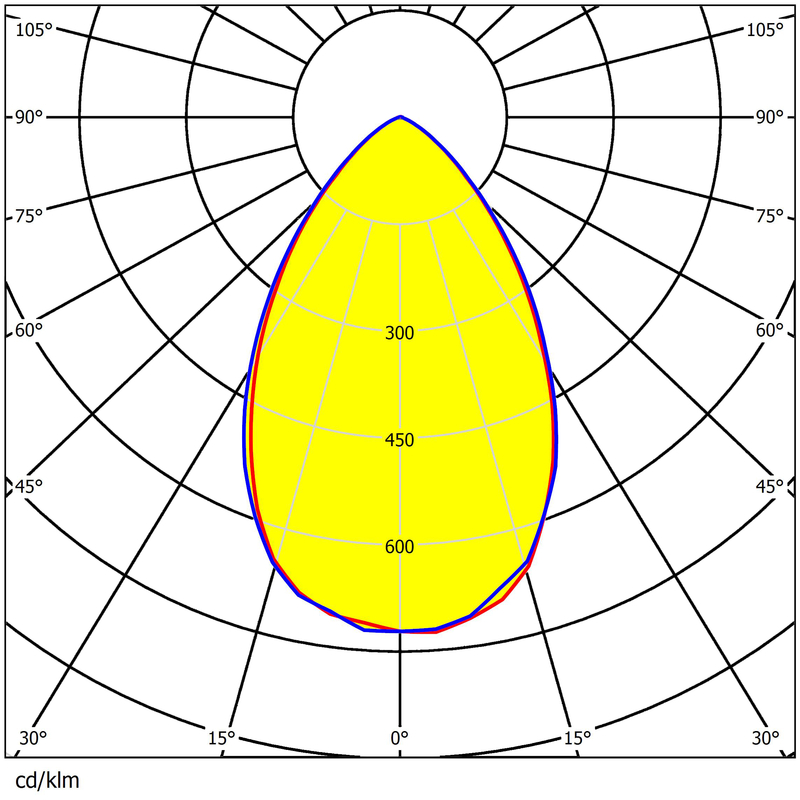

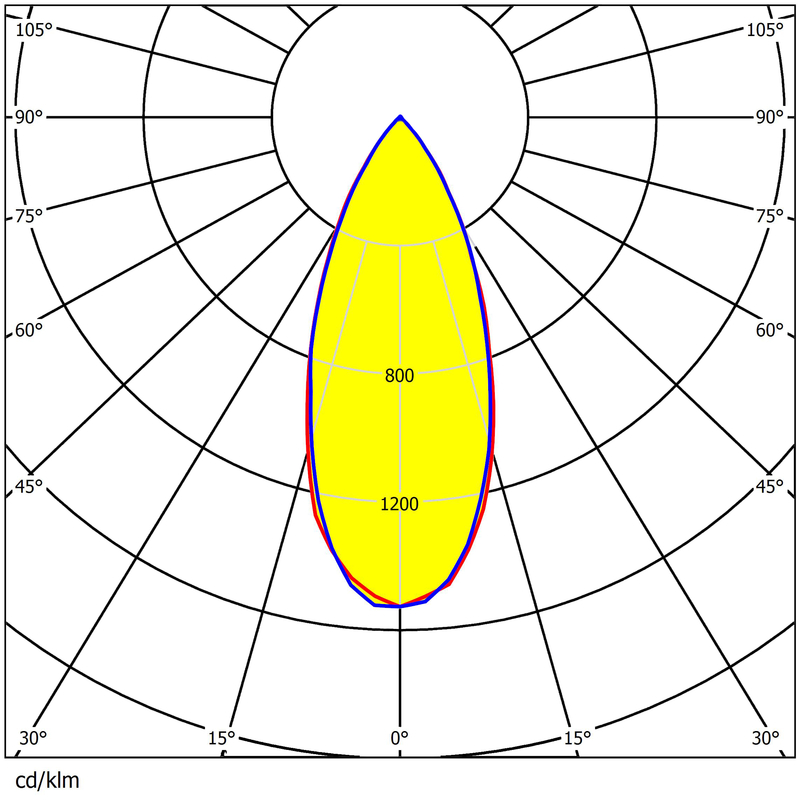

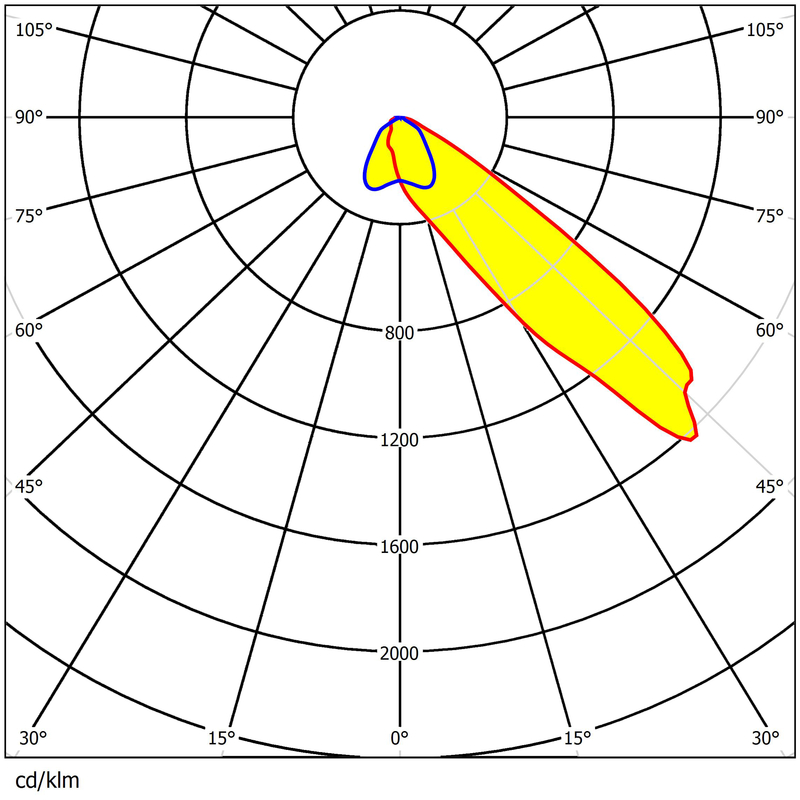

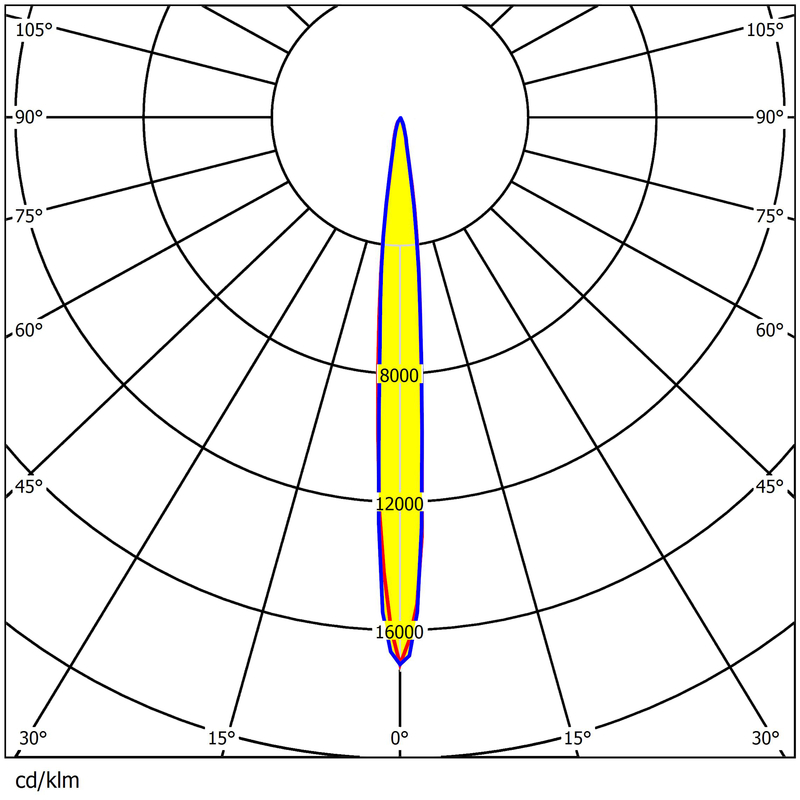

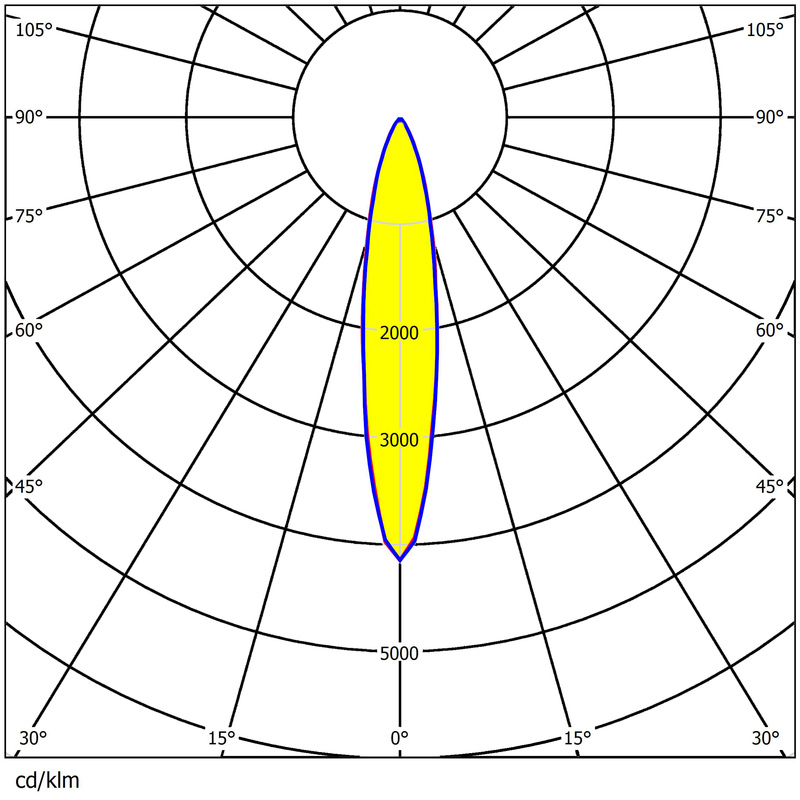

Light Distribution
Our Services
- Strict quality control measures
- Competitive pricing structure
- Latest product designs and technology
- Experienced professional team
- Clear and responsive communication
- Comprehensive OEM & ODM services
Frequently Asked Questions
Q1. What's your MOQ? Can I order a small quantity for the first time?
A: We accept small initial orders for new customers. Larger quantities qualify for better pricing.
Q2. What about the lead time?
A: Standard lead time is 2-12 days after payment (excluding customized products).
Q3. Which payment terms do you accept?
A: We accept T/T, PayPal, Western Union, and MoneyGram.
Q4. Can you do ODM and OEM products?
A: Yes, we welcome both ODM and OEM orders.
Q5. How to process mold product orders?
A: Process involves: 1) Requirements discussion, 2) Design proposal, 3) Design confirmation and deposit payment, 4) Mold completion and sample approval, 5) Balance payment and production.
Q6. How do you guarantee product quality?
A: All products undergo 100% quality inspection before shipment, with full support for any issues.
Q7. What about after-sales service?
A: We provide comprehensive support including troubleshooting guidance, spare parts supply, and 24/7 availability via phone or email.
Q8. How can I get a sample?
A: Small quantity samples are available with shipping fees; free samples may be provided for certain quantities.
